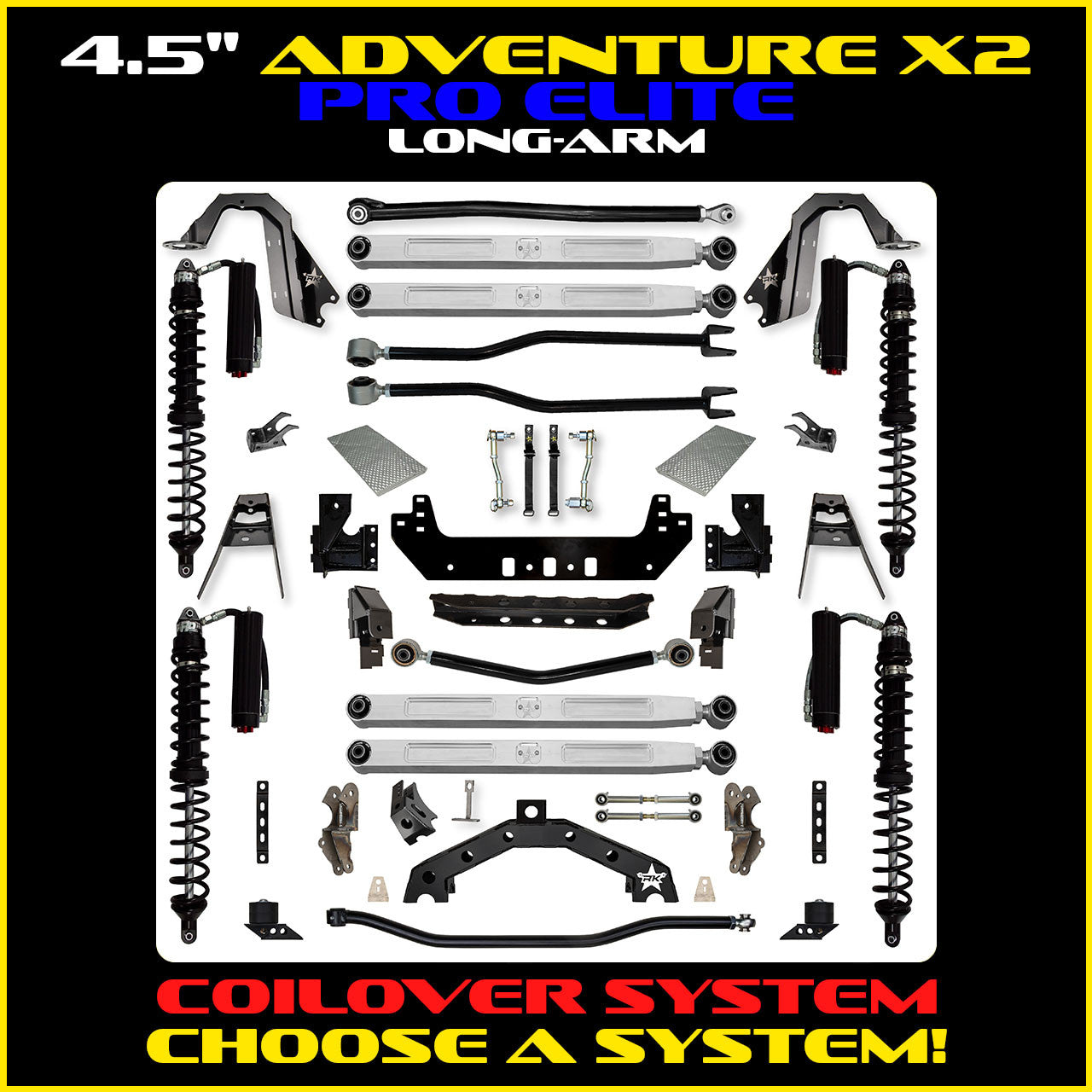

Rock Krawler 4.5" Adventure X2 PRO ELITE COILOVER Long-Arm Suspension System for Jeep Wrangler JLU (Gas Models)

Rock Krawler 4.5" Adventure X2 PRO ELITE COILOVER Long-Arm Suspension System for Jeep Wrangler JLU (Gas Models)

The Rock Krawler 4.5" Adventure - X2 PRO ELITE COILOVER Long-Arm System is the ultimate in compromise between daily driver/hard core off-roader. The "PRO ELITE" signifies you are entering the realm of PB&J (PURE BEEF AND JEALOUSY) by purchasing a system that is outfitted with 4 BILLET ALUMINUM CNC MACHINED SERVICE FREE lower control arms in a long arm length! This is as good as it gets; absolute strength, paired with a maintenance free peace of mind will have you blasting down any trail in America! The Adventure-X2 systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. Say goodbye to greasing your joints, our service free longarm system is here to stay. In every single control arm, we have our Adventure series joint center, which isolates harsh road vibrations equivalent to an OE bushing, includes high misalignment, and is fitted with a steel sleeve (that the bolt passes through) which rotates freely on a additional Teflon lined inner sleeve to insure that you are never chafing, twisting, or deforming the bushing material inside the housing as you blast through the mud, sand, sleet, salt, snow, dirt and dust. To finish it off, as you tighten your control arms into the mounts, the sleeve of the joint is engineered to be the buffer between the clamping force of a bracket, which means that as you tighten everything, you are not compressing the bushing. This all makes for an incredibly long lasting joint that never requires a drop of grease, and makes zero noise inside the housing. This is where conventional on road handling meets bad ass off-road ability. With enhanced rear instant center(s) and rear roll center(s), X2 rear suspension geometry is the smoothest riding 3-Link suspension you can take down a trail or cruise across America in your Wrangler. The new high clearance axle mounts provide 4.5” of ground clearance under the rear axle as compared to stock. The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of a full high clearance 4-link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails. The front sway bar disconnects allow your suspension to work freely when you are offroad.

The Comp System (Front Coilovers w/ Rear Coil Combination) is ideal for those that want the adjustability and performance of coilover racing shocks up front, but still want to use their Wrangler to carry small loads or tow small trailers. There are two options for the Comp Systems you can choose from. The standard or Stage 1 System features 2 5/8" RRD Racing Coilovers w/ Remote Reservoirs up front paired with matching 2 5/8" RRD Racing Shocks w/ Remote Reservoirs in the rear for a well tuned package. Or you can opt for the Stage 2 Comp System which will include Fast CD (Compression Dampening) Adjusters on the coilovers and rear shocks for an even greater level of tuneability.

The Trail Runner System (Front and Rear Coilover Combination) is ideal for those that want the adjustability and performance of coilover racing shocks at all 4 corners. This combination maximizes the off road ability of your Wrangler and comes well tuned for the street. Rear coilovers perform amazing off road, but do not take changes in loading conditions too well so towing or adding a lot of weight to the bed area is not optimal for rear coilovers. The standard or Stage 1 System features 2 5/8" RRD Racing Coilovers w/ Remote Reservoirs front and for a well tuned package. Or you can opt for the Stage 2 Trail Runner System which will include Fast CD (Compression Dampening) Adjusters on the coilovers for an even greater level of tuneability.

Like all of our systems, amazingly tuned ride and handling is our number one priority! It is no different with our coilover systems. Coilovers add another level of tuneability for the vehicle owner to further enhance the ride, handling and off road performance to their liking. Install exceptional value, and be the foundation for every adventure whether it be on the Street or on the Trail with a Rock Krawler Coilover Suspension System! Thank you for considering Rock Krawler Suspension.

System Benefits:

Excellent Highway Ride
Improved Off-Road Ability
Maintenance Free/ High Ability Control Arms Featuring our Award Winning Adventure Series Joints
Full High Clearance Design
High Clearance 4 Link Long Arm Front Suspension
High Clearance Independent 3 Link Long Arm Rear Suspension
Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
4.5" Rear Clearance Gain from the X2 Axle Bracket System
Adjustable Rear Anti-Squat Featuring X2 Geometry
Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability
Lifetime Warranty Coverage
System Includes:

(1) Weld-on Front Long-arm Mounting System
(1) Heat Shield Products Sticky Shield Kit
(1) Front Adjustable Anti-wobble Track Bar
(4) Billet 7075 Lower Control Arms
(4) Adjustable Upper Control Arms
(1) Front Sway Bar Disconnect Kit
(2) Weld-on Rear Frame Side Long Arm Mounts
(1) Rear Upper Control Arm
(1) Rear Frame Side Upper Control Arm Mount
(2) Rear Extended Sway Bar Links
(1) Rear Adjustable Anti-wobble Track Bar
(2) Weld-on Rear Upper Shock Mount
(2) Weld-on Rear Axle Side Control Arm Mount
(1) Weld-on Rear Track Bar Mount
(1) Weld-on Rear Axle Truss
(2) Rear Brake Line Relocation Brackets
(*DEPENDING ON SHOCK PACKAGE CHOSEN*)

Front Upper Shocks Mounts
Rear Triple-rate Coil Springs In COMP Systems
Rear Spring Correction Seats In COMP Systems
Shock Information:

All RRD Shocks and Coilovers are Designed and Built in-house

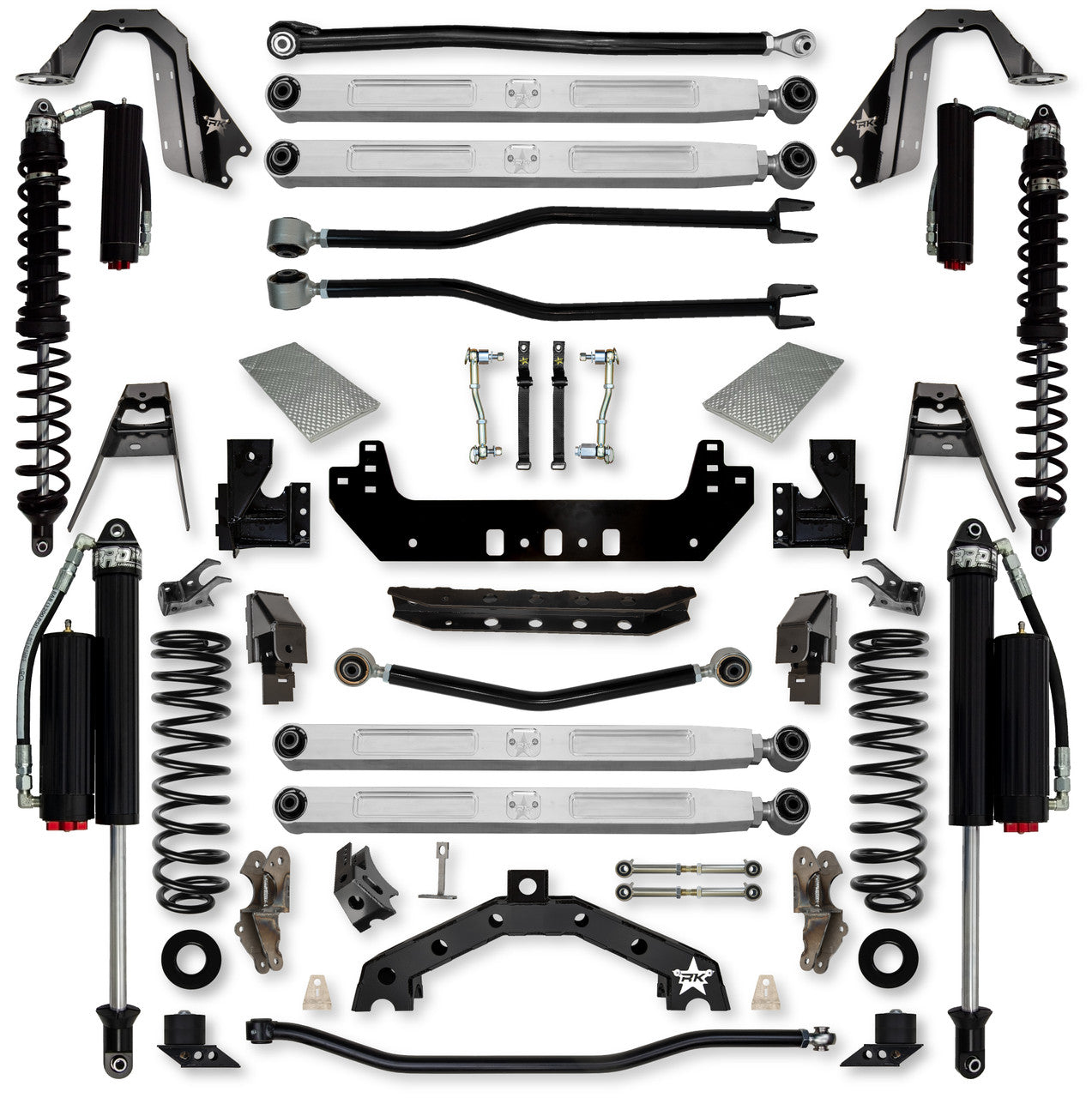

COMP SYSTEM STAGE 1 (Coilover Front/Coil Spring Rear)

13” Travel Front RRD 2.625" RR Coilover Shocks Yielding 14.4” of Front Axle Travel
12.5” Travel Rear RRD 2.625 RR Shocks Yielding 13.9” of Rear Axle Travel

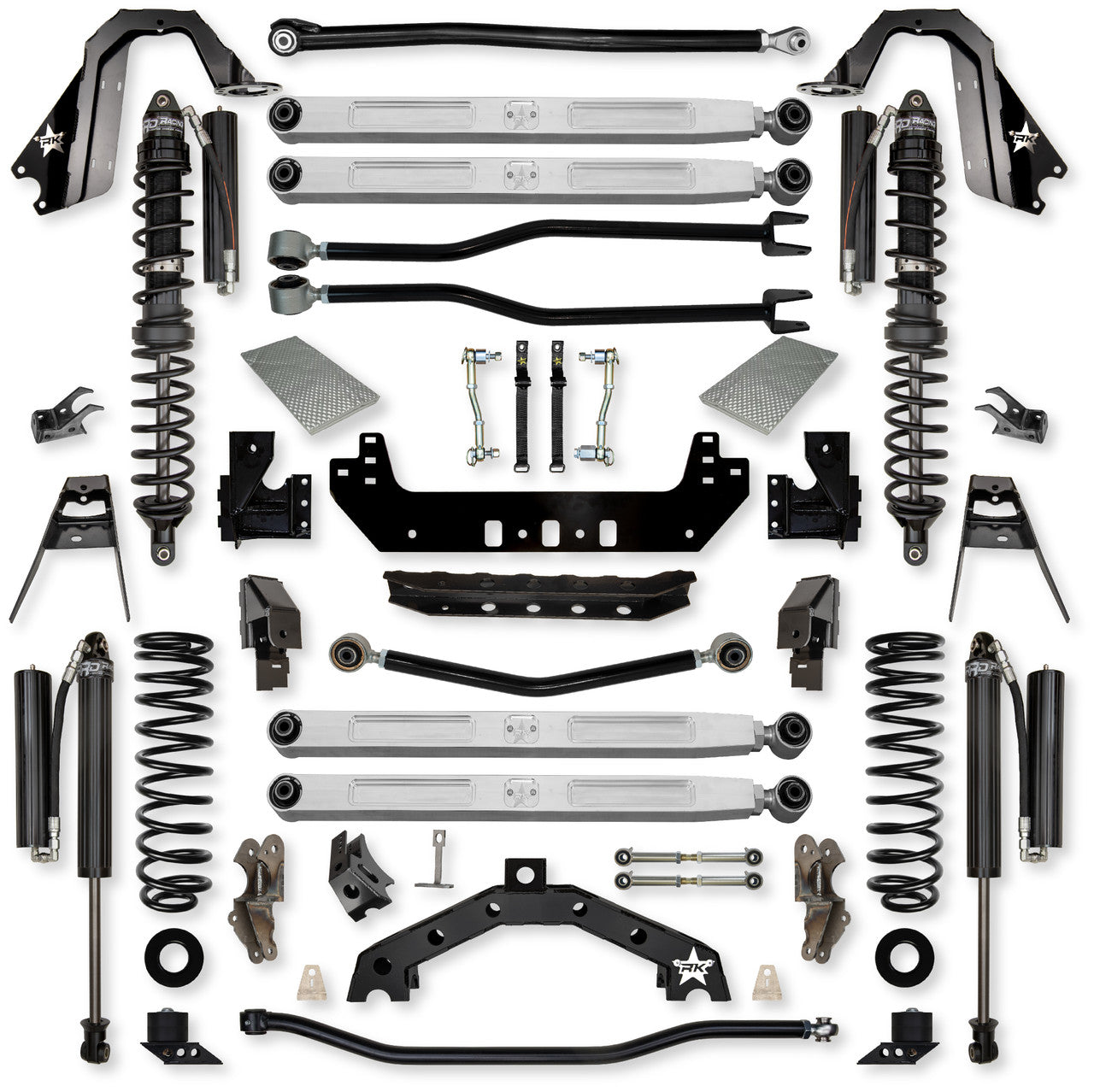

COMP SYSTEM STAGE 2 (Coilover Front/Coil Spring Rear) W/ Fast CD Adjustable Shocks

13” Travel Front RRD 2.625" FCD Coilover Shocks Yielding 14.4” of Front Axle Travel
12.5” Travel Rear RRD 2.625 FCD Shocks Yielding 13.9” of Rear Axle Travel

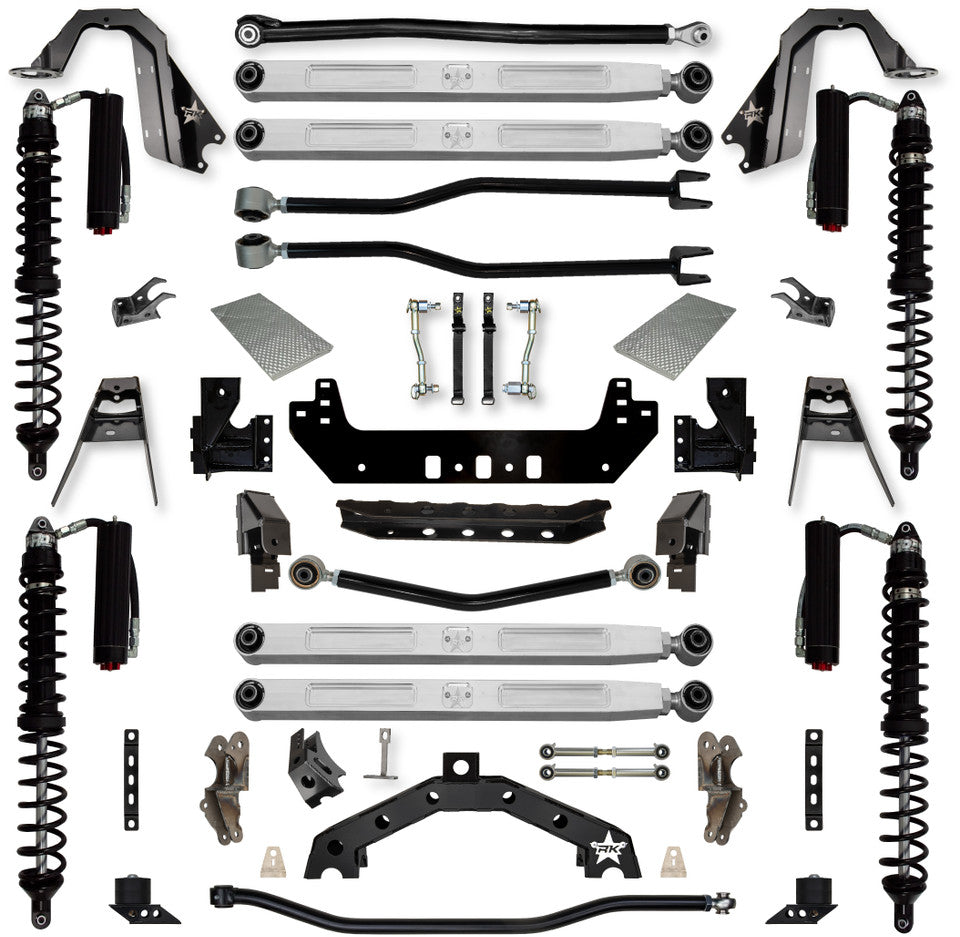

TRAIL RUNNER SYSTEM STAGE 1 (Coilovers Front and Rear)

13” Travel Front RRD 2.625" RR Coilover Shocks Yielding 14.4” of Front Axle Travel
12” Travel Rear RRD 2.625" RR Coilover Shocks Yielding 13.3” of Front Axle Travel

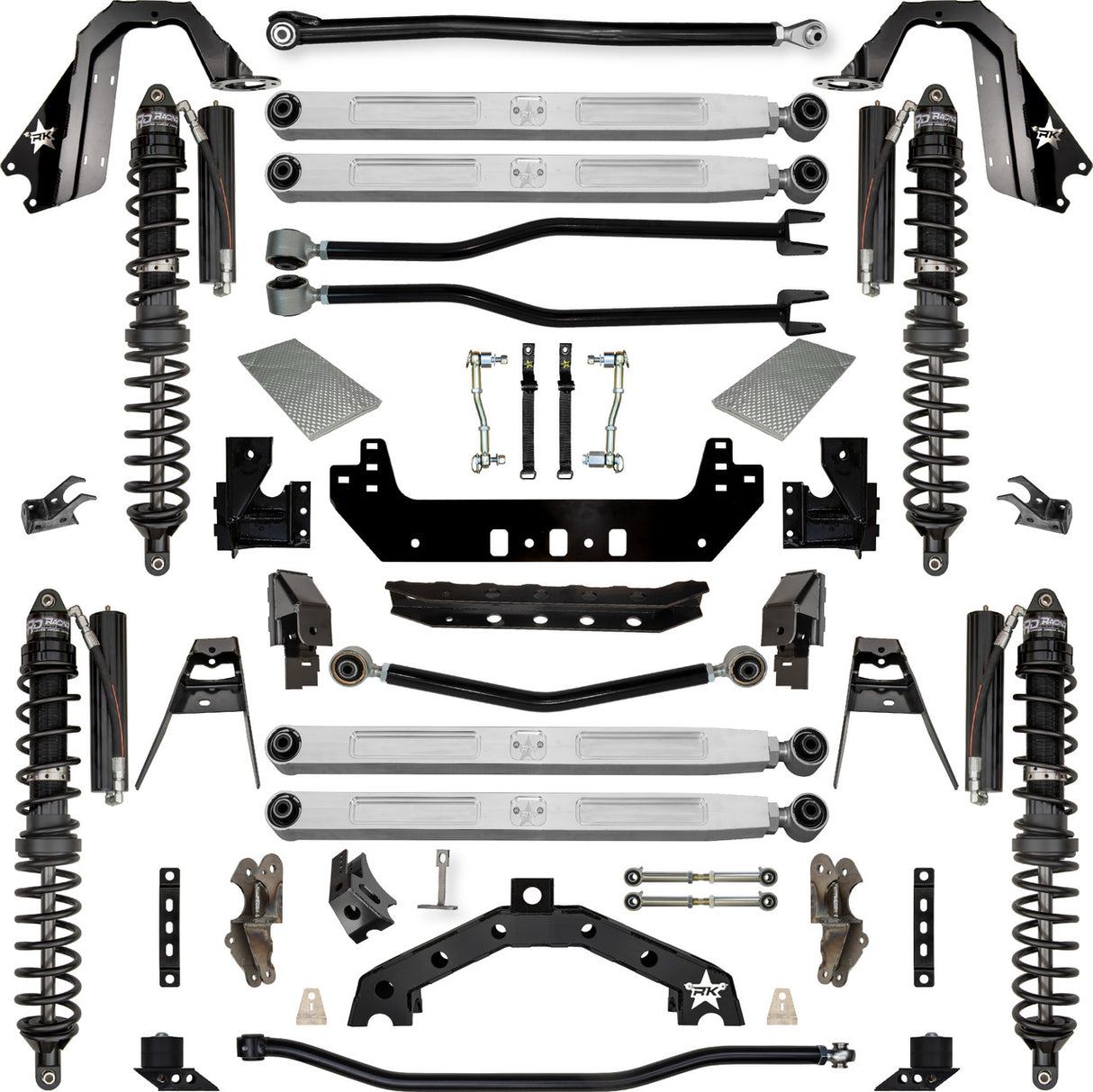

TRAIL RUNNER SYSTEM STAGE 2 (Coilovers Front & Rear) W/ Fast CD Adjustable Shocks

13” Travel Front RRD 2.625" FCD Coilover Shocks Yielding 14.4” of Front Axle Travel
12” Travel Front RRD 2.625" FCD Coilover Shocks Yielding 13.3” of Front Axle Travel
Wheel Fitment:

Sport and Overland Wheel Fitment Recommendations

37”/38” Tall Tires - Recommend 3.5” of Back Spacing
Mojave Fitment Recommendations

37” Tall Tires – Recommend 4.5” of Back Spacing
40” Tall Tires – Recommend 3.5” of Back Spacing
Tire Fitment:

Sport and Overland with Full OEM Fenders

37” Tall Tires (3” Bump Stop Height Recommended)
Sport and Overland with Trimmed or High Lined OEM Fenders

38” Tall Tires (3” Bump Stop Height Recommended)
Mojave with Full OEM Fenders

37”/38” Tall Tires (3” Bump Stop Height Recommended)
Mojave with Trimmed or High Lined OEM Fenders

40” Tall Tires (3” Bump Stop Height Recommended)
General Notes:

All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).
XR Package does not require OUR raised rear track bar bracket, the factory axle has a raised rear trackbar bracket, and for OUR systems that do not have a rear trackbar one must be added.
If building with a spare delete, we recommend dropping 1” in coil lift height for the rear.
If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29"
Requires welding of the Front and Rear Long Arm Mounts
Requires removal of the OEM frame side lower front and rear control arm mounts
Requires removal of the OEM frame side front and rear upper control arm mounts
Requires removal of the OEM axle side rear lower control arm and track bar mounts
Requires modifying the OEM front & rear shock mounts and welding of the raised rear upper shock mounts
Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up
