Rock Krawler 3.5" X-Factor X2 "No Limits" Long-Arm Suspension System for Jeep Wrangler JL (Gas Models)

Rock Krawler 3.5" X-Factor X2 "No Limits" Long-Arm Suspension System for Jeep Wrangler JL (Gas Models)

The Rock Krawler Suspension 3.5" X - Factor X2 "No Limits" Long-Arm System is specifically designed for Wrangler owners who want to push their vehicle to its limits with hard core rock crawling. The Term, "No-Limits" comes from the inclusion of our front sway bar links specifically designed for use with the factory electronic sway bar disconnect feature found standard in your Rubicon Wrangler! The sway bar links themselves come with factory sized hardware, a CNC machined billet aluminum center section, and Made in USA heim joints from FK bearing, once installed, just press the button and hit the rocks! The Rock Krawler X2 Longarm System features an Independent 3 link design front & rear for maximum articulation and off-road performance. Our proprietary design utilizes a double adjustable front and rear upper control arm that upsizes the factory hardware to 14mm, 2 3/8" mounting width and 1" Pro Krawler joints at each end. The arm itself is a chromoly solid steel arm meant to carry all the forces of the suspension. The rear suspension provides adjustable anti-squat with "X2" rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). As you drive the highways or the trails, the system feels stable, safe and strong whether you are running the stock drivetrain or pushing high horsepower through the chassis. We have built the X-Factor X2 system to be the toughest 3-Link setup on the market. At the frame connections of the lower control arms, our "Adventure Series" maintenance free joint is used to cut down on the amount of grease points, and provide excellent vibration absorption and proper joint misalignment when off-road. The combination of high clearance long arms and 3 link suspension geometry lets you dominate the trails. When we design a system, our goal is to provide you with the most comprehensive solution and the best geometry, install exceptional value, and be the foundation for every adventure whether it be on the Street, In tow, or down a Trail! Thank you for considering Rock Krawler Suspension.

System Benefits:

Excellent Highway Ride
Improved Off-Road Ability
Maintenance Free/ High Ability Control Arms Featuring our Award Winning Adventure Series Joints
Full High Clearance Design
High Clearance 4 Link Long Arm Front Suspension
High Clearance Independent 3 Link Long Arm Rear Suspension
Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
4.5" Rear Clearance Gain from the X2 Axle Bracket System
Adjustable Rear Anti-Squat Featuring X2 Geometry
Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability
Lifetime Warranty Coverage

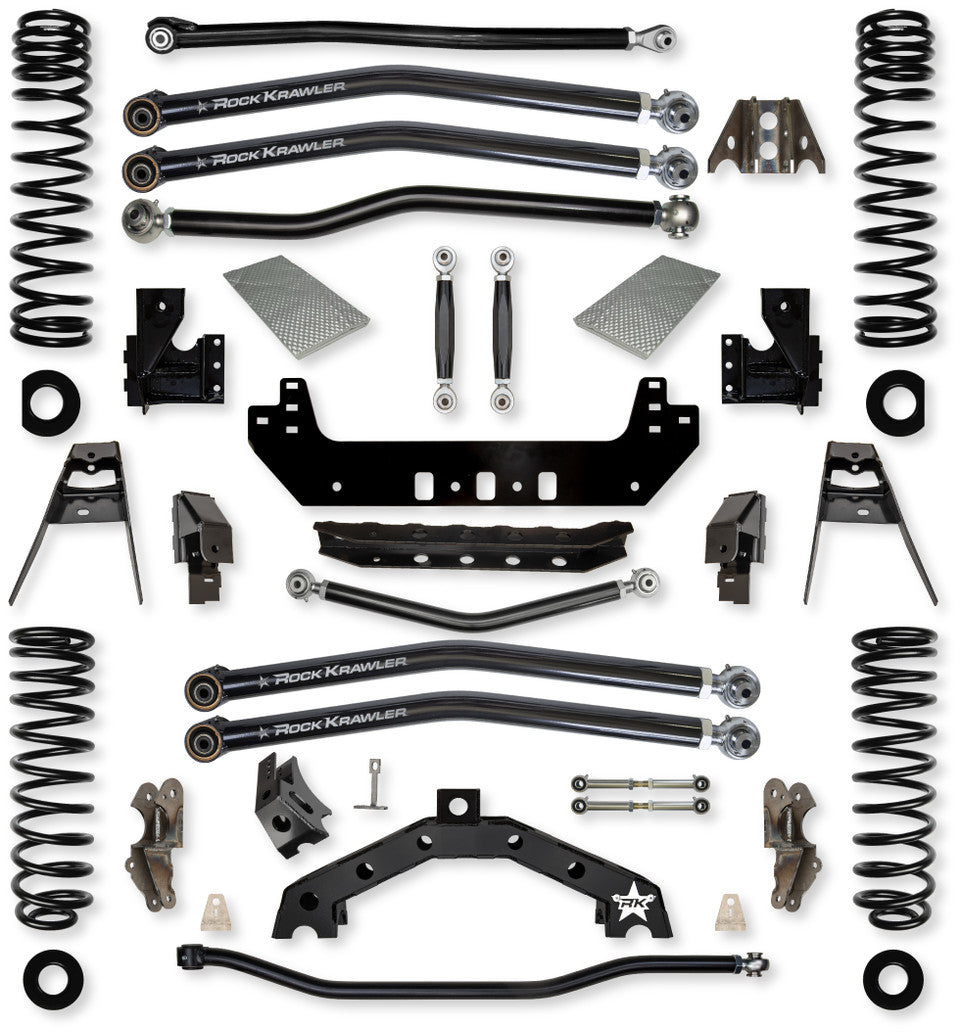

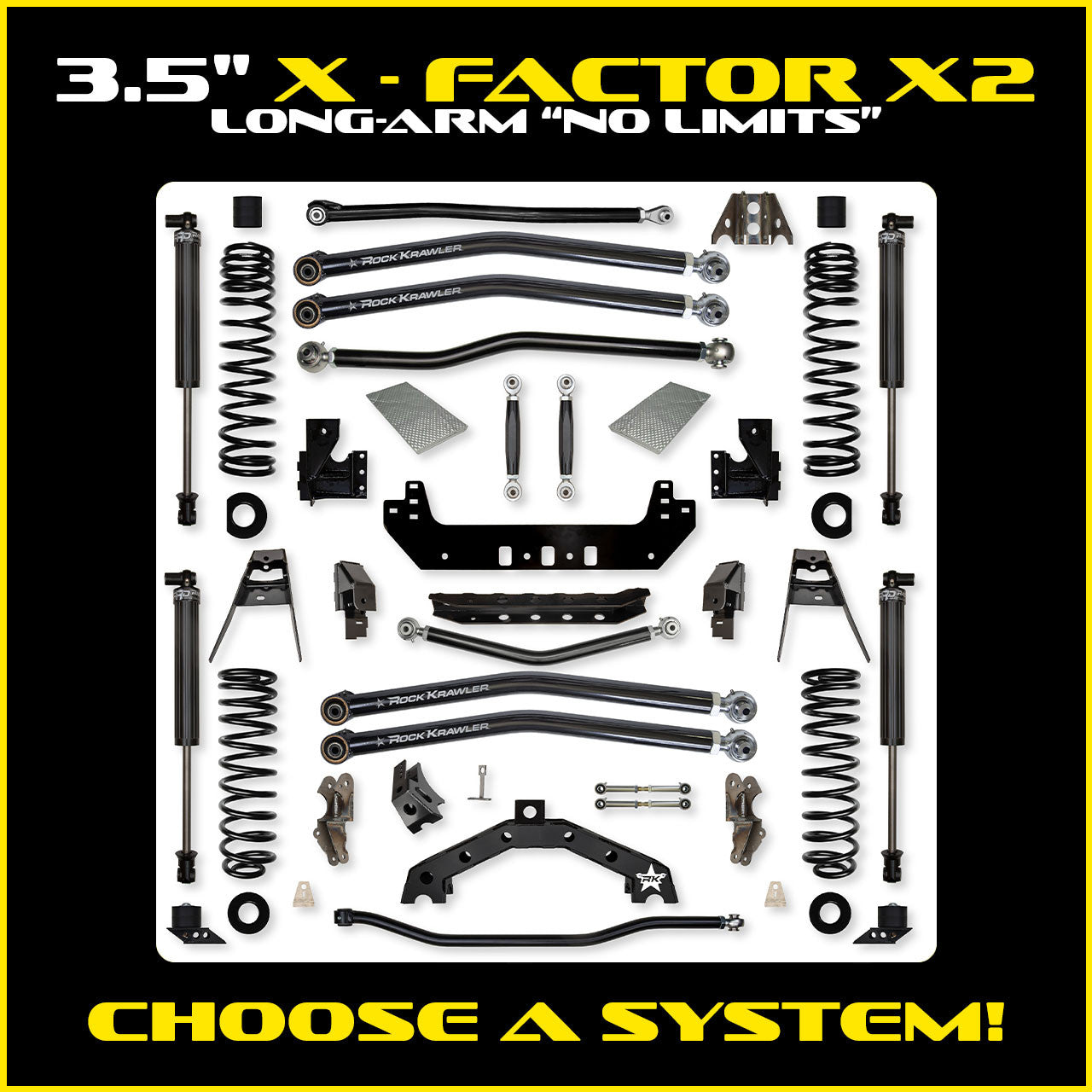

System Includes:

(1) Weld-on Front Long-arm Mounting System
(1) Heat Shield Products Sticky Shield Kit
(1) Front Adjustable Anti-wobble Track Bar
(2) High Clearance Adjustable X-Factor Front Lower Control Arms
(1) Adjustable Front Upper Control Arm
(1) Front "No Limits" Sway Bar Kit
(4) Triple-rate Coil Springs
(4) Coil Spring Correction Seats
(2) Weld-on Rear Frame Side Long Arm Mounts
(2) High Clearance Adjustable X-Factor Lower Control arms
(1) Rear Upper Control Arm
(1) Rear Frame Side Upper Control Arm Mount
(2) Rear Extended Sway Bar Links
(1) Rear Adjustable Anti-wobble track bar
(2) Weld-on Rear Upper Shock Mount
(2) Weld-on Rear Axle Side Control Arm Mount
(1) Weld-on Rear Track Bar Mount
(1) Weld-on Rear Axle Truss
(2) Rear Brake Line Relocation Brackets
(*DEPENDING ON SHOCK PACKAGE CHOSEN*)
Bump Stops Are Included with All Shock Options
IF YOU CHOOSE NO SHOCKS - BUMPSTOPS CAN BE PURCHASED SEPARATELY - RK07124
Shock Information:

All RRD Shocks and Coilovers are Designed and Built in-house
Generic Front Shock Length – 17.5” Collapsed/ 29.5” Maximum Extended
Generic Rear Shock Length – 18.5” Collapsed/ 30.5” Maximum Extended

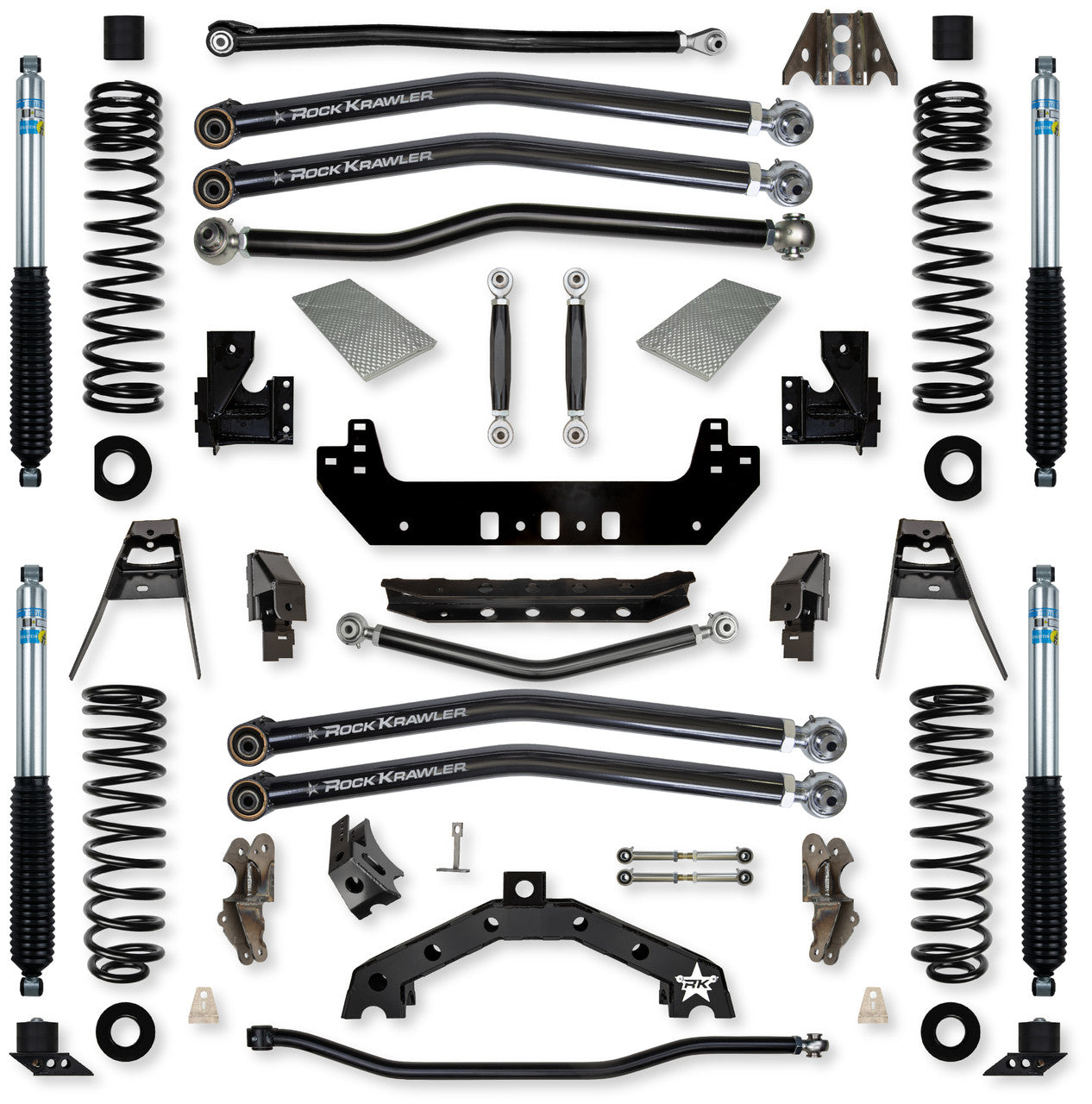

Bilstein 5100 Shocks

A Great Pairing with Our Multi-rate Coil Springs
Maintenance Free

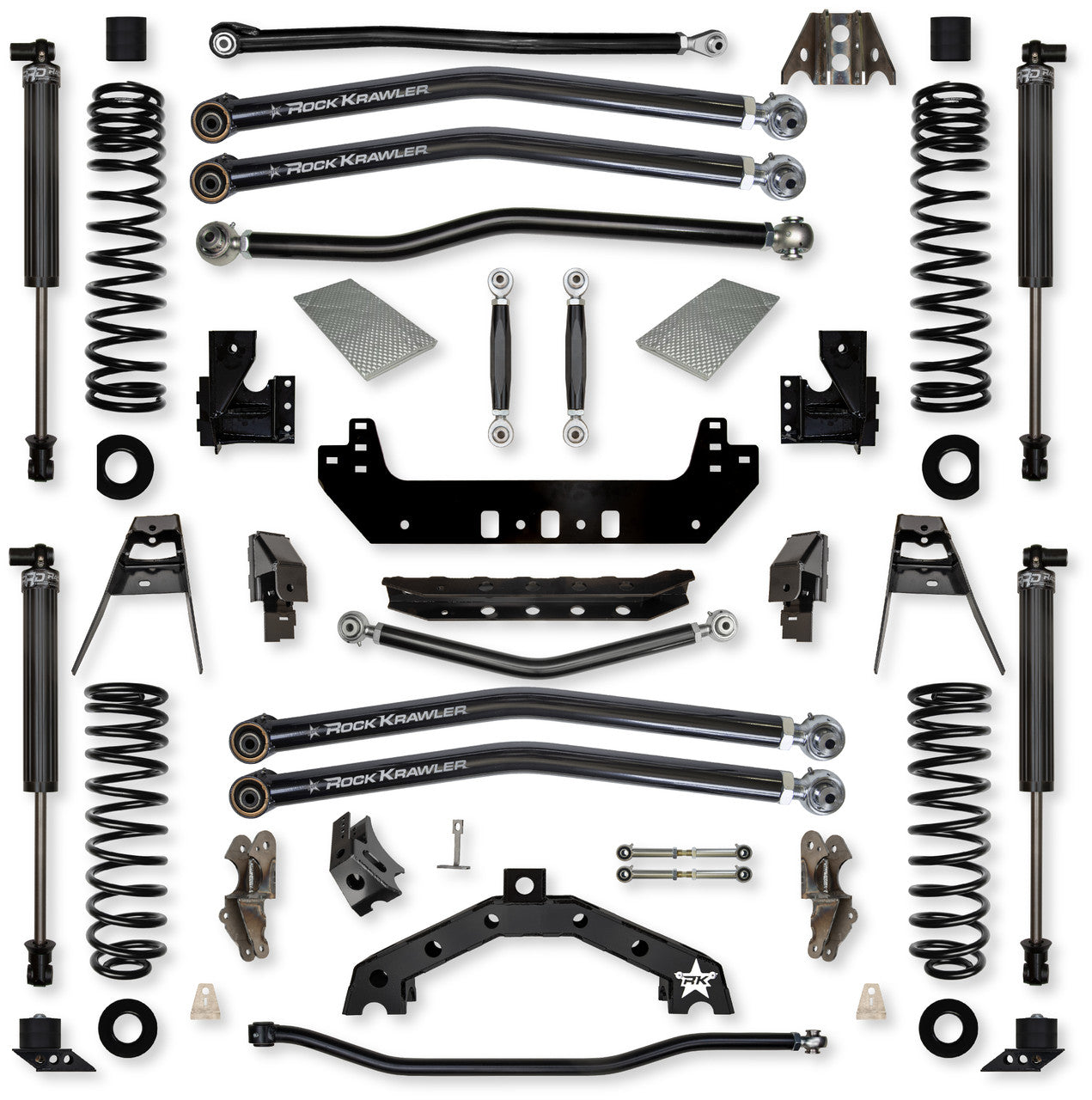

RRD 2.25" IFP Shocks

2.25” O.D. Military Grade Hard Anodized Fluted Aluminum Shock Body
Cooling Surface Area of a 2.5” Shock
3/4” 17-4 PH Stainless Steel, Hard Chrome Plated and Polished Shaft
Billet Aluminum Valve Circuit and Components
Dual DU Shaft Bearings and Double Redundant Sealing Methods
Built in-house
Serviceable/Rebuildable/Revalveable
More Info
Wheel Fitment:

Rubicon Fitment Recommendations

37” Tall Tires – Recommend 4.5” of Back Spacing
40” Tall Tires – Recommend 3.5” of Back Spacing
Tire Fitment:

Rubicon with Full OEM Fenders

37”/38” Tall Tires (3” Bump Stop Height Recommended)
Rubicon with Trimmed or High Lined OEM Fenders

40” Tall Tires (3” Bump Stop Height Recommended)
General Notes:

All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).
XR Package does not require OUR raised rear track bar bracket, the factory axle has a raised rear trackbar bracket, and for OUR systems that do not have a rear trackbar one must be added.
If building with a spare delete, we recommend dropping 1” in coil lift height for the rear.
If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29"
Requires welding of the Front and Rear Long Arm Mounts
Requires removal of the OEM frame side lower front and rear control arm mounts
Requires removal of the OEM frame side front and rear upper control arm mounts
Requires removal of the OEM axle side rear lower control arm and track bar mounts
Requires modifying the OEM rear shock mounts and welding of the raised rear upper shock mounts
Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up
